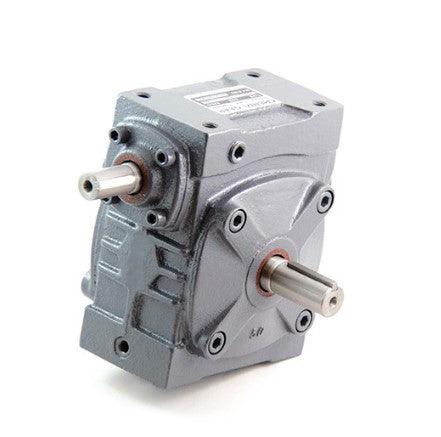

Forces Inc Right Angle Gear Speed Reducer 20:1 Size 100 (Right Output) | CTU10020-R
Product Details : Right Angle Gear Speed Reducer 20:1 Size 100 (Right Output) | CTU10020-R
- Part No: CTU10020-R
- Product Category: Universal
- Series: CTU
- Type: Gear Speed Reducer
- Size: 100
- Shaft Output: Right
- # of Outputs: 1
- Ratio: 20:1
- HS (IN): 2"
- U (IN): 1-1/8"
- *7V** (IN): 1/4*1/8
- LS (IN): 2-15/16"
- SS (IN): 1-1/2"
- *WY** (IN): 3/8*3/16

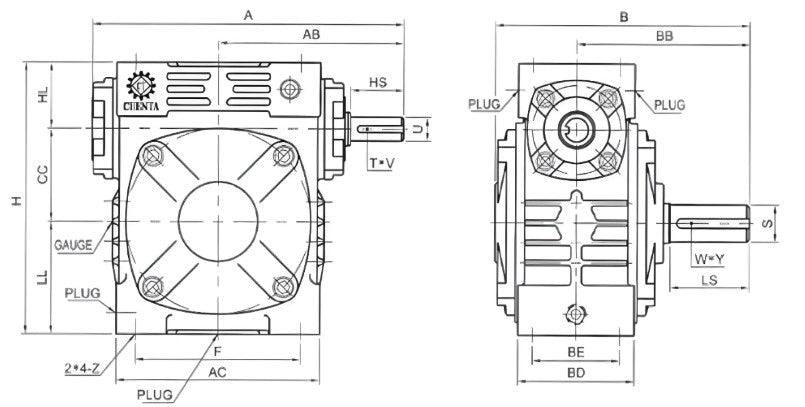

- A (IN): 12.795"
- AB (IN): 7.559"
- AC (IN): 8.819"
- B (IN): 10.236"
- BD (IN): 4.567"
- BE (IN): 3.563"
- CC (IN): 3.937"
- F (IN): 7.374"
- H (IN): 12.205"
- HL (IN): 3.15"
- LL (IN): 5.118"
- Z (IN): 1/2-13
-
Specs At 1800 RPM:
• Input HP: 4.42
• Output Torque (lbs/in): 2436
• Overhung Load (lbs): 551 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
