Right Angle Gear Speed Reducer 182TC 30:1 Size 732 (Right Output) | BMU73230-R

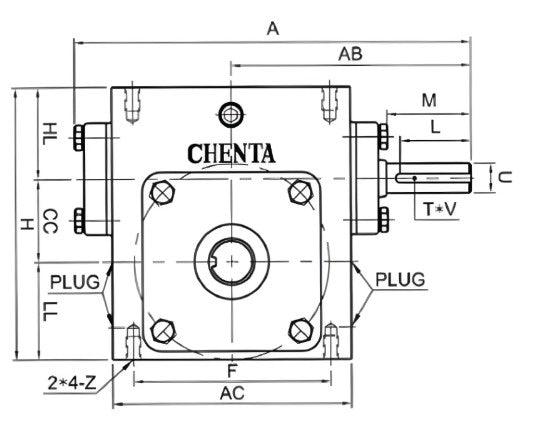

• Dimensions PDF

Product Details : Right Angle Gear Speed Reducer 182TC 30:1 Size 732 (Right Output) | BMU73230-R

• Part No: BMU73230-R
• Product Category: Drop-In
• Series: BMU
• Type: Gear Speed Reducer
• Size: 732
• Shaft Output: Right
• # of Outputs: 1
• Ratio: 30:1
• Flange: 182TC
• U (IN): 1-1/8"
• *7V** (IN): 1/4*1/8
• L1 (IN): 2.438"
• S (IN): 1-3/8"
• *WY** (IN): 5/16*5/32
• LA (IN): 7.25"
• LB (IN): 8.5"
• LC (IN): 9"
• LE (IN): 0.236"
• Z1 (IN): 0.551"
• A (IN): 11.56"
• AB (IN): 6.34"
• AC (IN): 9"
• B (IN): 10.86"
• BB (IN): 7.06"
• BD (IN): 5.75"
• BE (IN): 4"
• CC (IN): 3.25"
• F (IN): 7.5"
• H (IN): 9.375"
• HL (IN): 2.625"
• LL (IN): 3.5"
• Specs At 1800 RPM:
  • Input HP: 3.66
  • Output Torque (lbs/in): 2449.13
  • Overhung Load (lbs): 1710.46
• Gear Case & Bearing Housing Material(s): Cast Iron
• Wheel Material(s): Bronze Alloy
• Oil Seal: Double Lips

For any information about products, please contact us.

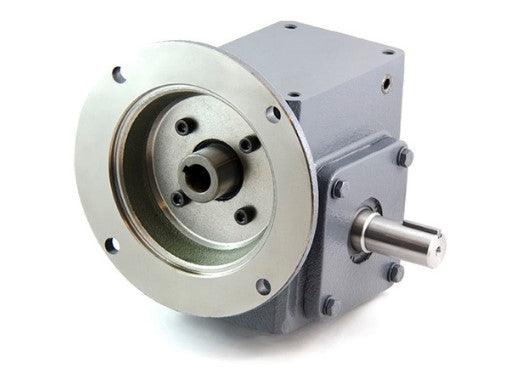

*Photos for reference purposes only.
