Right Angle Gear Speed Reducer 143T 30:1 Size 726 (Left Output) | BMU72630-L

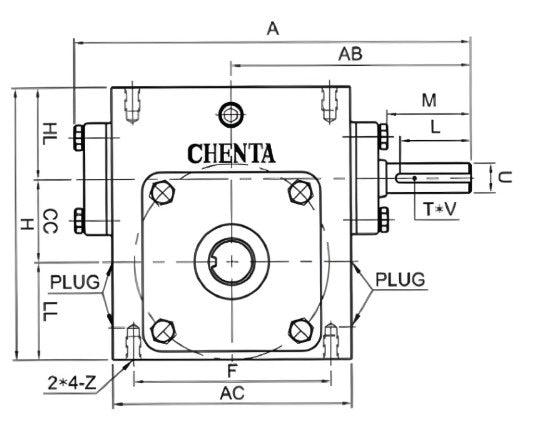

• Dimensions PDF

Product Details : Right Angle Gear Speed Reducer 143T 30:1 Size 726 (Left Output) | BMU72630-L

• Part No: BMU72630-L
• Product Category: Drop-In
• Series: BMU
• Type: Gear Speed Reducer
• Size: 726
• Shaft Output: Left
• # of Outputs: 1
• Ratio: 30:1
• Flange: 143T
• U (IN): 7/8"
• *7V** (IN): 3/16*3/32
• L1 (IN): 1.938"
• S (IN): 1-1/8"
• *WY** (IN): 1/4*1/8
• LA (IN): 5.875"
• LB (IN): 4.5"
• LC (IN): 6.5"
• LE (IN): 0.197"
• Z1 (IN): 0.433"
• A (IN): 9.75"
• AB (IN): 5.21"
• AC (IN): 7.2"
• B (IN): 8.93"
• BB (IN): 5.63"
• BD (IN): 4.83"
• BE (IN): 3.375"
• CC (IN): 2.625"
• F (IN): 6.375"
• H (IN): 8"
• HL (IN): 2.437"
• LL (IN): 2.938"
• Specs At 1800 RPM:
  • Input HP: 2.22
  • Output Torque (lbs/in): 1394.95
  • Overhung Load (lbs): 1194.60
• Gear Case & Bearing Housing Material(s): Cast Iron
• Wheel Material(s): Bronze Alloy
• Oil Seal: Double Lips

For any information about products, please contact us.

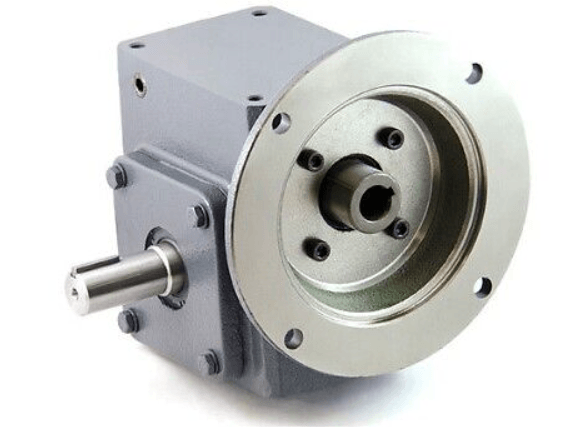

*Photos for reference purposes only.
