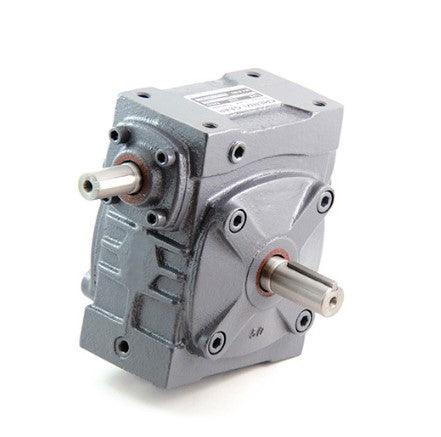

Right Angle Gear Speed Reducer 10:1 Size 70 (Right Output) | CTU7010-R
Forces Inc Right Angle Gear Speed Reducer 10:1 Size 70 (Right Output) | CTU7010-R
Product Details : Right Angle Gear Speed Reducer 10:1 Size 70 (Right Output) | CTU7010-R
- Part No: CTU7010-R
- Product Category: Universal
- Series: CTU
- Type: Gear Speed Reducer
- Size: 70
- Shaft Output: Right
- # of Outputs: 1
- Ratio: 10:1

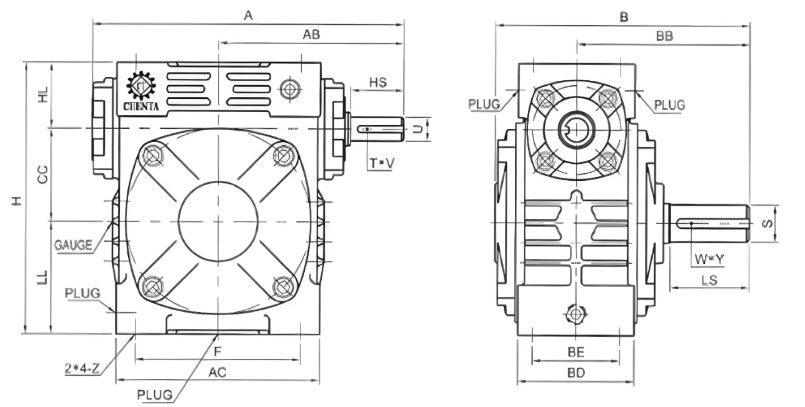

- HS (IN): 1-9/16"
- U (IN): 7/8"
- *7V** (IN): 3/16*3/32
- LS (IN): 2-3/8"
- SS (IN): 1-1/5"
- *WY** (IN): 1/4*1/8
- A (IN): 9.213"
- AB (IN): 5.512"
- AC (IN): 6.063"
- B (IN): 8.11"
- BD (IN): 3.465"
- BE (IN): 2.598"
- CC (IN): 2.756"
- F (IN): 4.921"
- H (IN): 8.071"
- HL (IN): 1.969"
- LL (IN): 3.346"
- Z (IN): 3/8-16
-
Specs At 1800 RPM:
• Input HP: 3.27
• Output Torque (lbs/in): 930
• Overhung Load (lbs): 308 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
