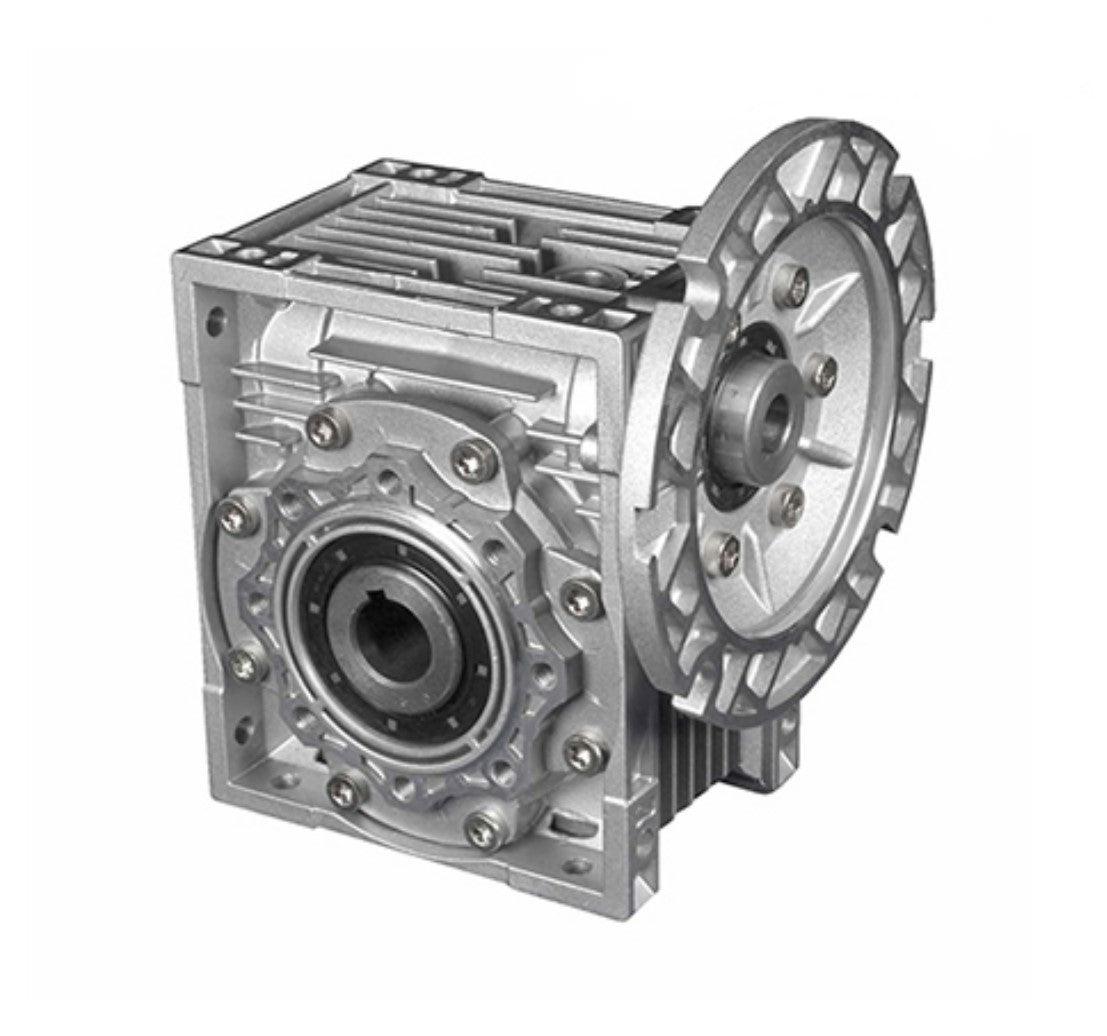

Forces Inc Max Motion MMR50-7.5-56C | Aluminum Gearbox 56C 7.5:1 Size 50 Output Bore 1"
Product Details : Max Motion MMR50-7.5-56C | Aluminum Gearbox 56C 7.5:1 Size 50 Output Bore 1"
- Part No: MMR50-7.5-56C
- Size: 50
- NEMA Frame: 56C
- Input Bore: 5/8"
- Output Bore: 1"
- Ratio: 7.5:1
- Output RPM: 233
- Output Torque (IN.Lbs): 628
- Max Input HP @1750 RPM: 2.64
- Max Overhung Load (Lbs): 369
- Material: Aluminum
- Warranty: 1 Year
- Weight (Lbs): 8,7
Product Accessories :
- Size 50 Single Output Shaft 1"
- Size 50 Double Output Shaft 1"
- Size 50 Plastic Shaft Safety Cover
- Size 50 Output Flange FA
- Size 50 Torque Arm Assembly
