Spring Loaded Type B Polypak® Rod/Piston U-Seal 4.500" x 5.000" x 0.375" - AU/SS

Product Details : Spring Loaded Type B Polypak® Rod/Piston U-Seal 4.500" x 5.000" x 0.375" - AU/SS

• Part No: 25004500S375B/4622
• Product Category: Symmetrical seals
• Product Type: Rod/Piston U-Seal
• Profile: Type B Polypak®
• Style: Spring Loaded
• Material(s): Polyurethane/Stainless Steel
• Material Code: AU/SS
• Temperature Range: -65°F to +200°F (-54°C to +93°C)
• Pressure Range: ≤ 5000 PSI (≤ 345 Bar)
• Surface Speed: < 1.6 ft/s (0.5 m/s)
• System Of Measurement: Inch

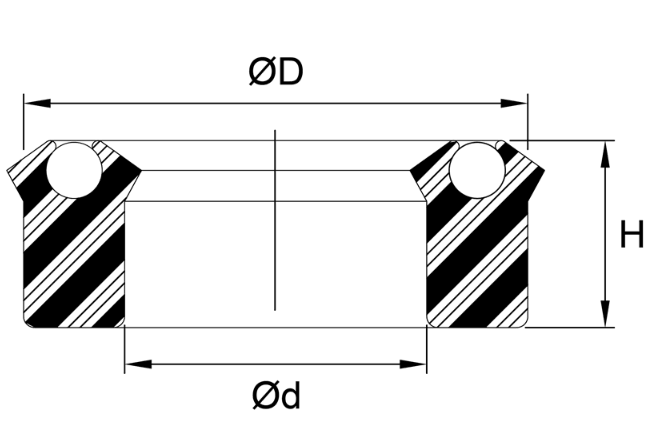

• Dimensions: 4.500" x 5.000" x 0.375"
• Nominal I.D. (d): 4.500"
• Nominal O.D. (D): 5.000"
• Nominal Height (H): 0.375"
• Nominal Cross Section (S): 0.250"
• Details:

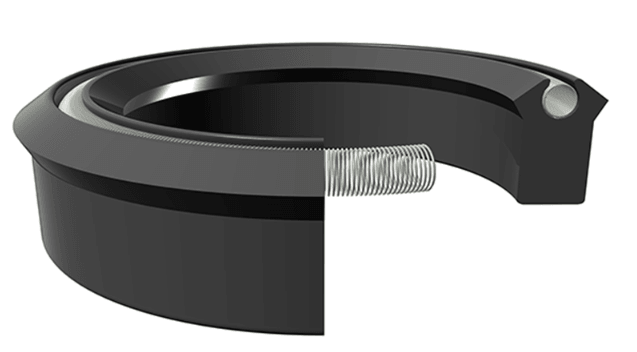

  •Spring Loaded Polypaks® use a special metal spring to replace the traditional elastomeric O-ring expander normally required to provide the requisite seal lip contact
  •This metal spring provides a lower force to activate the seal lips while eliminating the problem of compression set and loss of force due to fatigue over time

For any information about products, please contact us.

*Photos for reference purposes only.
