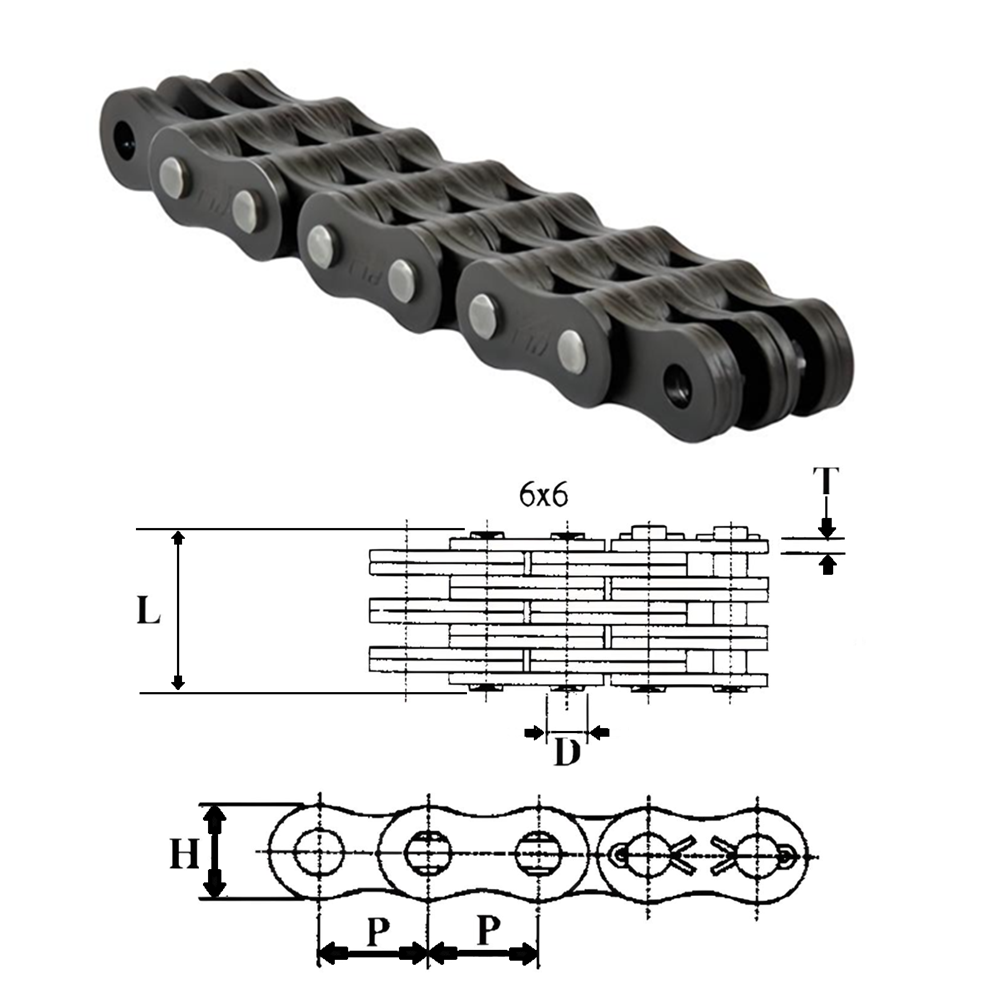

AL1266 | Leaf Chain 6 x 6 Lacing 1.5" Pitch - 10ft Box

Engineered for high-load tensioning, lifting, and counterbalance applications, our leaf chains deliver outstanding ultimate tensile strength and fatigue life. The interleaved link-plate configuration maximizes bearing contact across through-pins, distributing high cyclic stress evenly to resist joint galling, pin fatigue, and pitch elongation. Precision-punched link apertures ensure uniform pitch integrity, delivering balanced load sharing across each strand and smooth articulation over guide sheaves. Built to absorb intense shock loading without yielding, they provide dependable lifting reliability for demanding duty cycles. Ideal for counterbalance systems, heavy material hoists, and industrial machine tool tensioners.

Product Details : AL1266 | Leaf Chain 6 X 6 Lacing 1.5" Pitch - 10ft Box

• Part No: PLIAL1266
• Product Type: Leaf Chain
• Series: AL
• Chain No.: AL1266
• Length: 10ft
• Lacing: 6 X 6

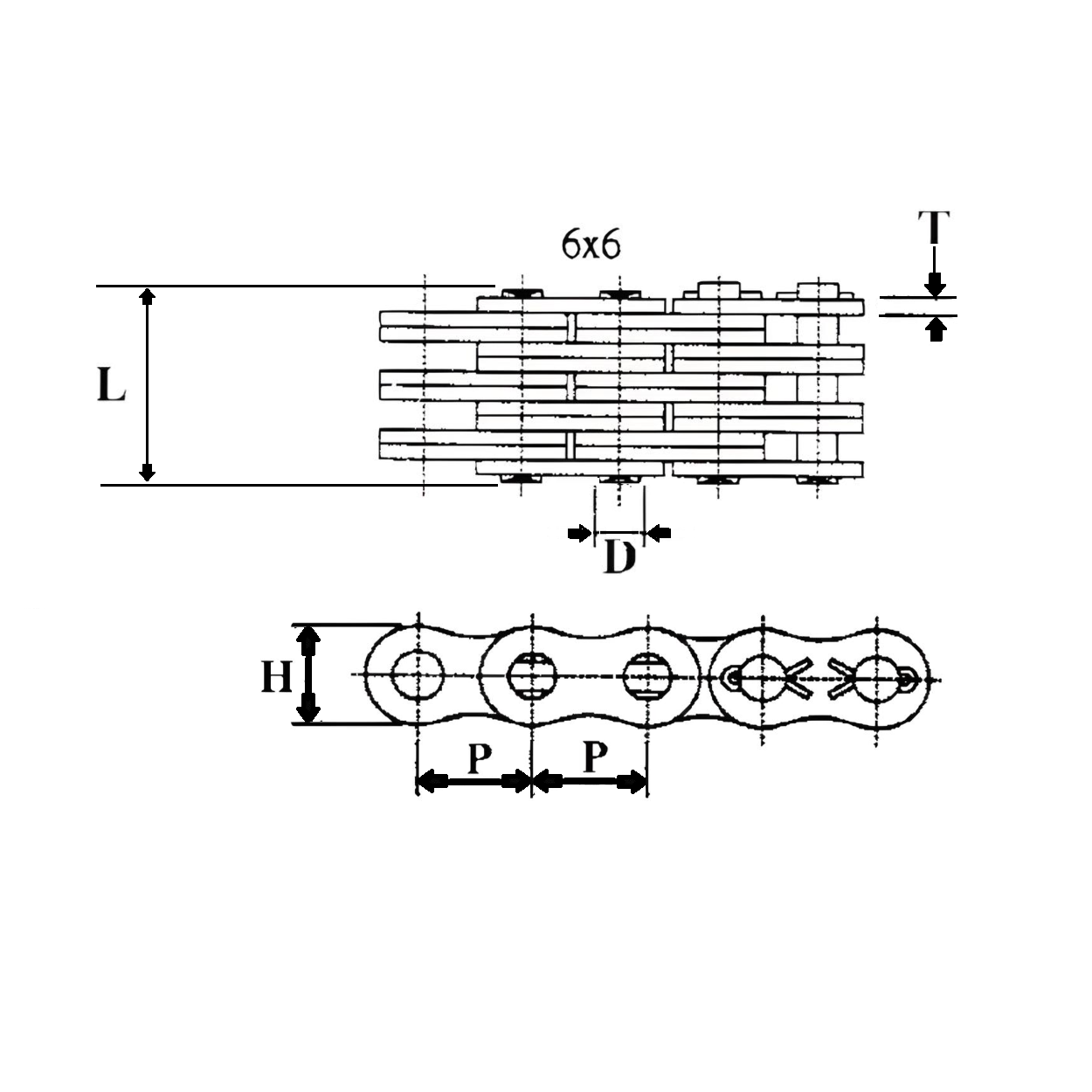

• Pitch (P): 1.5"
• Plate height (H): 1.181"
• Plate Thickness (T): 0.185"
• Pin Diameter (D): 0.437"
• Pin Length (L): 2.512"
• Average Ultimate Strength (lbs): 105600 lbs
• Material(s): Carbon Steel
• Weight (lbs): 66

For any information about products, please contact us.

*Photos for reference purposes only.
