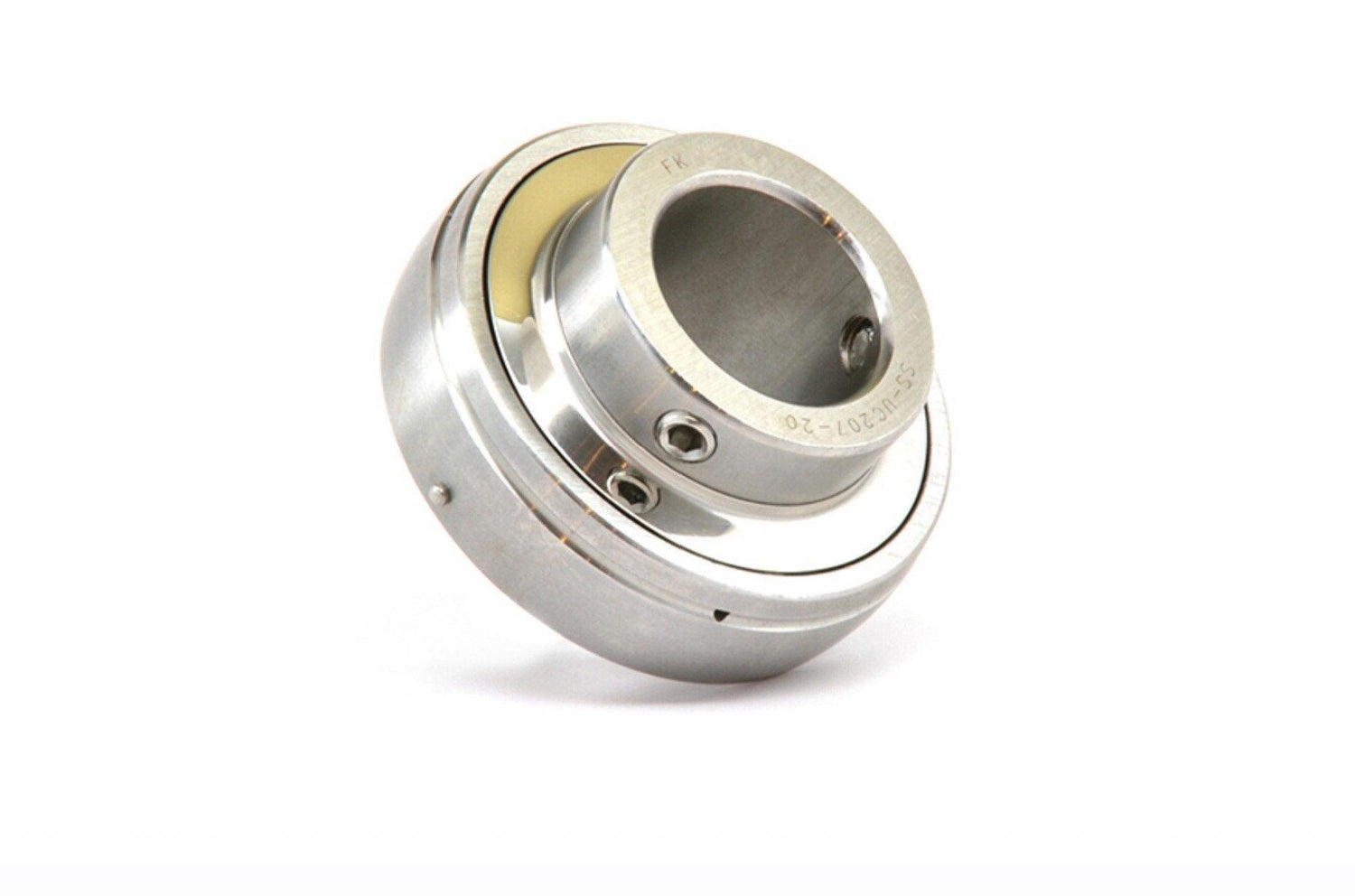

SS-UC208-24 | UC Insert Bearing Stainless Steel Shaft 1-1/2"

Engineered for harsh, sanitary, and washdown environments, our stainless steel insert bearings offer maximum resistance to rust, corrosive chemicals, and continuous moisture exposure. Built entirely with high-grade stainless steel rings and balls, each unit features a spherical outer diameter to accommodate shaft misalignment and comes pre-lubricated with food-safe grease. Equipped with durable, water-resistant contact seals and stainless steel slingers, these bearings lock out contaminants and prevent wash-out during high-pressure washdowns, making them the ideal choice for food processing lines, beverage bottling, pharmaceutical equipment, and various other applications.

SS-UC208-24 | UC Insert Bearing Stainless Steel Shaft 1-1/2"

Details & Specifications

• Part No: SSUC208-24
• Shaft Dia Inch: 1,5
• Type: UC
• Dimensions **D** (Inches): 3,1496
• Dimensions **B** (Inches): 1,937
• Dimensions **C** (Inches): 0,827
• Dimensions **S** (Inches): 0,748
• Dimensions **S1** (Inches): 1,189
• Dimensions **G** (Inches): 0,315
• Dimensions **ds** (Inches) (Inches): 5/16-24
• Dimensions **F** (Inches): 0,244
• Load Rating Static: 6630
• Load Rating Dynamic: 4070
• Wgt. Lbs.: 1,5

For any information about products, please contact us.

*Photos for reference purposes only.
