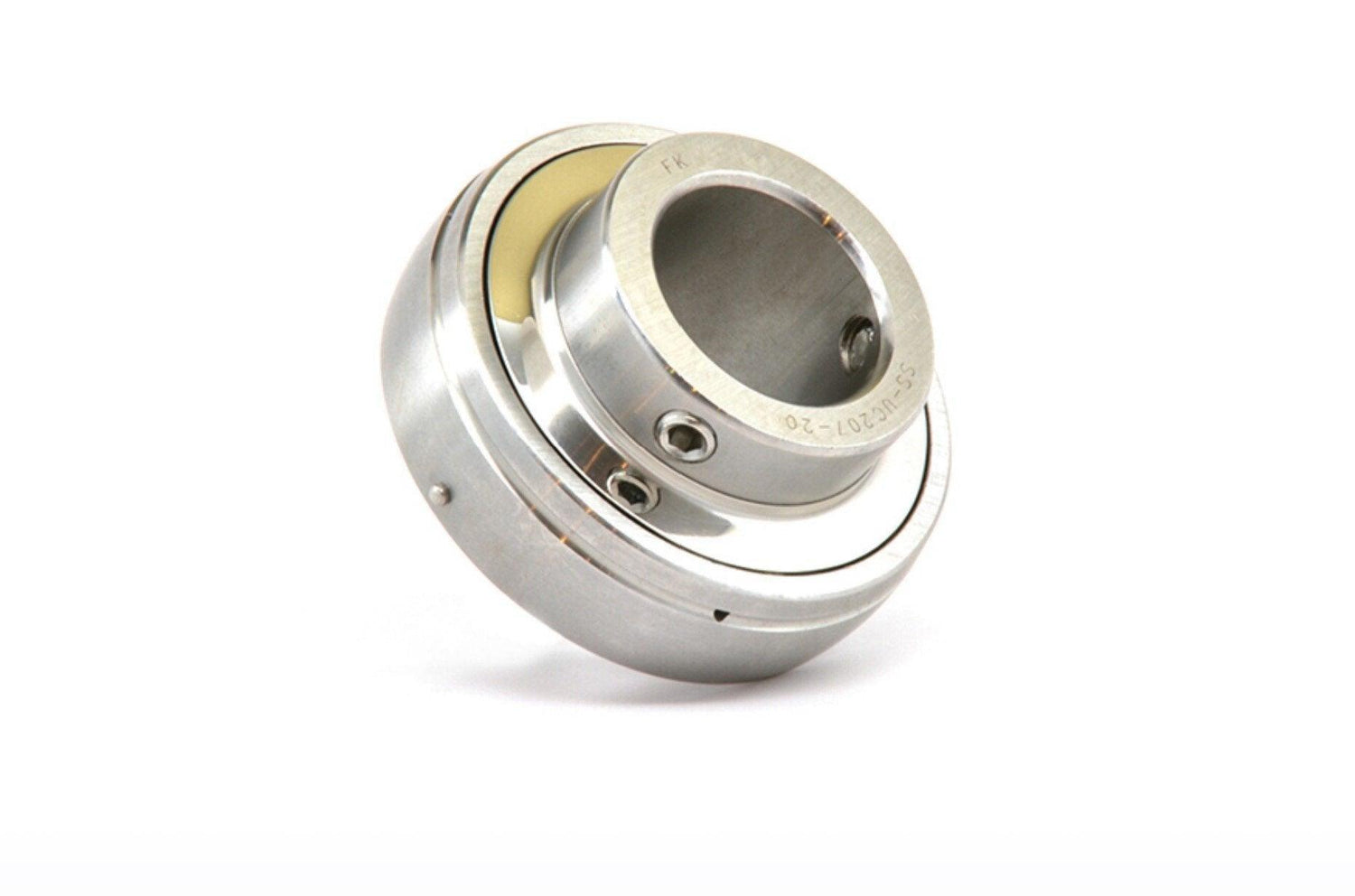

SS-UC206 30mm | UC Insert Bearing Stainless Steel Shaft 30mm

Engineered for harsh, sanitary, and washdown environments, our stainless steel insert bearings offer maximum resistance to rust, corrosive chemicals, and continuous moisture exposure. Built entirely with high-grade stainless steel rings and balls, each unit features a spherical outer diameter to accommodate shaft misalignment and comes pre-lubricated with food-safe grease. Equipped with durable, water-resistant contact seals and stainless steel slingers, these bearings lock out contaminants and prevent wash-out during high-pressure washdowns, making them the ideal choice for food processing lines, beverage bottling, pharmaceutical equipment, and various other applications.

Take your engineering projects to the next level with the SSUC206 30mm UC Insert Bearing. Crafted from stainless steel with a shaft diameter of 30mm, this bearing is designed for superior resilience and accuracy. Enjoy long-term operation at peak efficiency with this reliable, durable bearing.

SS-UC206 30mm | UC Insert Bearing Stainless Steel Shaft 30mm

Details & Specifications

• Part No: SSUC206 30mm
• Shaft Dia Inch: 30mm
• Type: UC
• Dimensions **D** (Inches): 2,4409
• Dimensions **B** (Inches): 1,5
• Dimensions **C** (Inches): 0,748
• Dimensions **S** (Inches): 0,626
• Dimensions **S1** (Inches): 0,874
• Dimensions **G** (Inches): 0,197
• Dimensions **ds** (Inches) (Inches): 1/4-28
• Dimensions **F** (Inches): 0,197
• Load Rating Static: 4400
• Load Rating Dynamic: 2540
• Wgt. Lbs.: 0,66

For any information about products, please contact us.

*Photos for reference purposes only.
