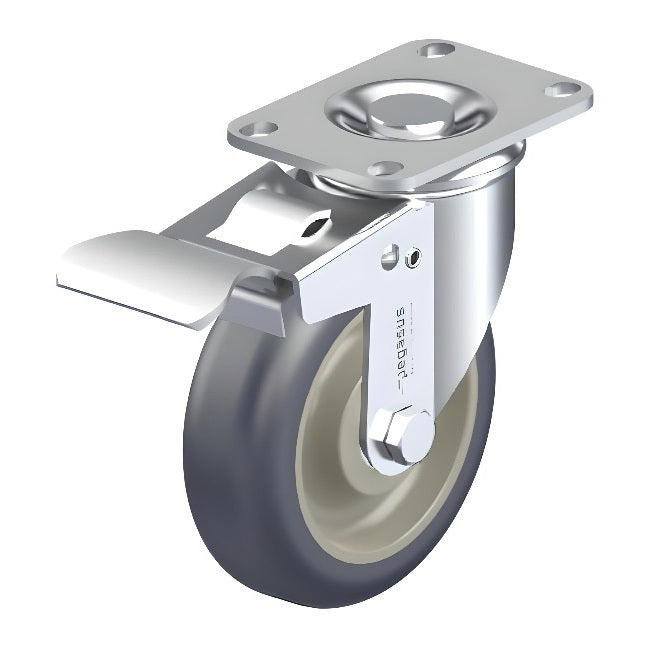

Polyurethane Grey Caster 5" x 1-1/4" Swivel Total Lock Brake (TB) 300 lbs Delrin® Bearing P12X Series

Product Details : Polyurethane Grey Caster 5" x 1-1/4" Swivel Total Lock Brake (TB) 300 lbs Delrin® Bearing P12X Series

• Product Type: Medium Light Duty Casters
• Series: P12X Series
• Wheel Material: Polyurethane Grey
• Caster Type: Swivel
• Brake Options: Total Lock Brake (TB)
• Mount Type: Top Plate
• Plate Material: Stainless Steel
• Wheel Diameter: 5"
• Wheel Width: 1-1/4"
• Tread / Tire Material(s): Grey Thermoplastic Polyurethane Tread
• Wheel Core / Rim Material(s): Beige Polypropylene

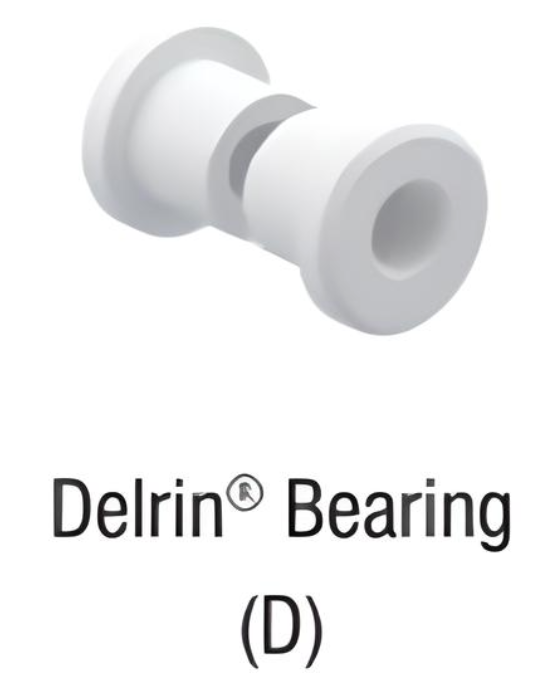

• Bearing Type: Delrin® Bearing
• Load Capacity (lbs): 300 lbs
• Total Height: 6-3/16"
• Swivel Lead: 1-5/16"

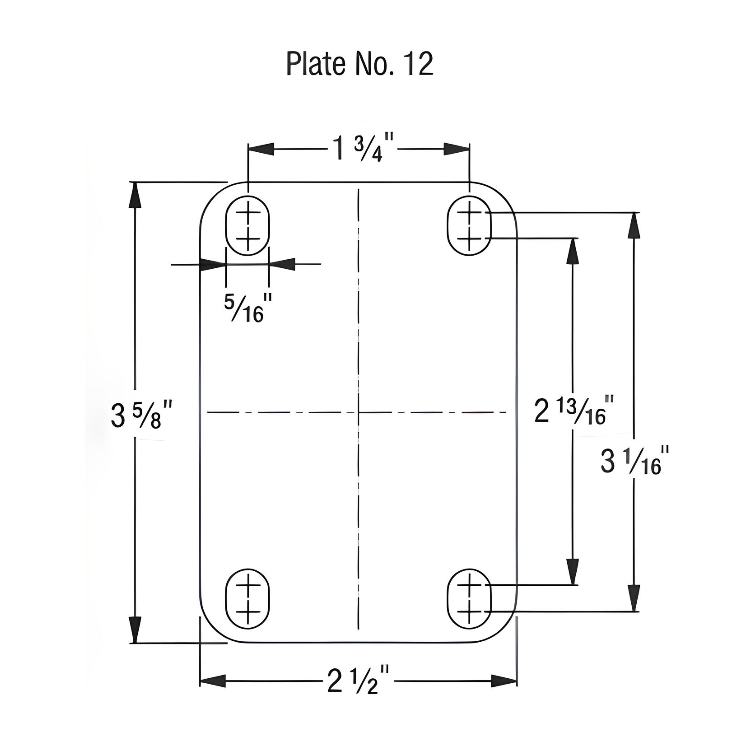

• Top Plate No.: 12
• Plate Size: 2-1/2" x 3-5/8"
• Bolt Hole Spacing: 1-3/4" x 2-13/16" to 3-1/16"
• Bolt Hole Size: 5/16"
• Where Used:
  • Baking carts
  • Autoclaves
  • Medical equipment
• Features:
  • Hardened stainless steel double ball raceways with Ø 1/2" kingpin
  • 304 stainless steel with polished finish for excellent rust and corrosion resistance
  • Stainless steel 3/8" axle and locknut
  • Delrin bearing wheels offer corrosion resistance and smooth operation in humid environments (economical plain bore HRP and HBP wheels)
  • Rig leg spacing: 1-9/16"
  • Hardness: 55–65 Shore D
  • Temperature range: -45° to 180° F
• Wheel Treads: Thermoplastic polyurethane on polypropylene cores add the benefit of a softer tread for quiet operation
• Certified Quality Management System: ISO 9001
• Warranty: 3 Year

For any information about products, please contact us.

*Photos for reference purposes only.
