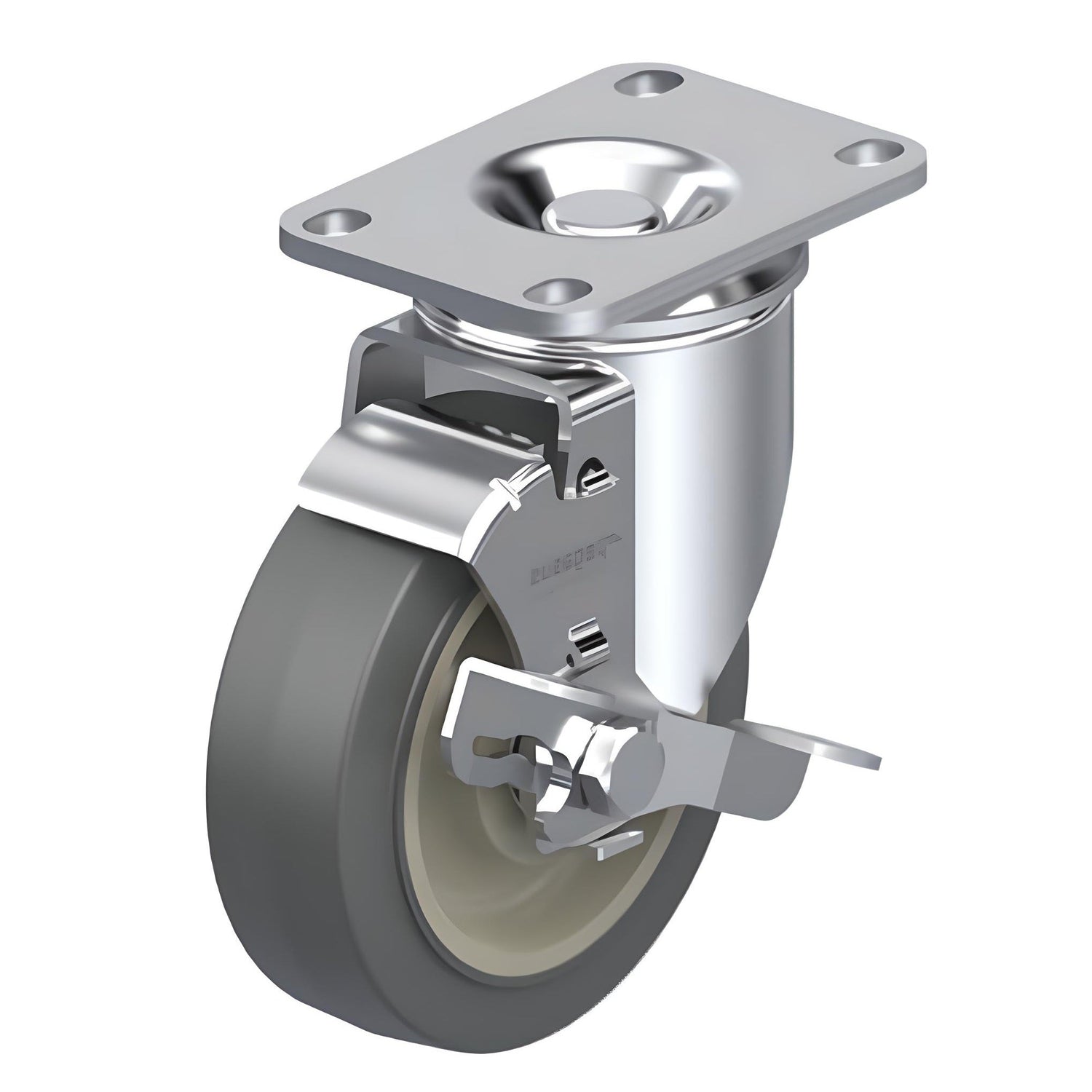

ElastiSoft Gray Caster 3" x 1-1/4" Swivel Wheel Brake (WB) 200 lbs Delrin® Bearing P12 Series

Product Details : ElastiSoft Grey Caster 3" x 1-1/4" Swivel Wheel Brake (WB) 200 lbs Delrin® Bearing P12 Series

• Product Type: Light-Medium Duty Casters
• Series: P12 Series
• Wheel Material: ElastiSoft Grey
• Caster Type: Swivel
• Brake Options: Wheel Brake (WB)
• Mount Type: Top Plate
• Plate Material: Zinc Finish
• Wheel Diameter: 3"
• Wheel Width: 1-1/4"
• Tread / Tire Material(s): Grey Elastisoft Thermoplastic Rubber Tread
• Wheel Core / Rim Material(s): Beige Polypropylene

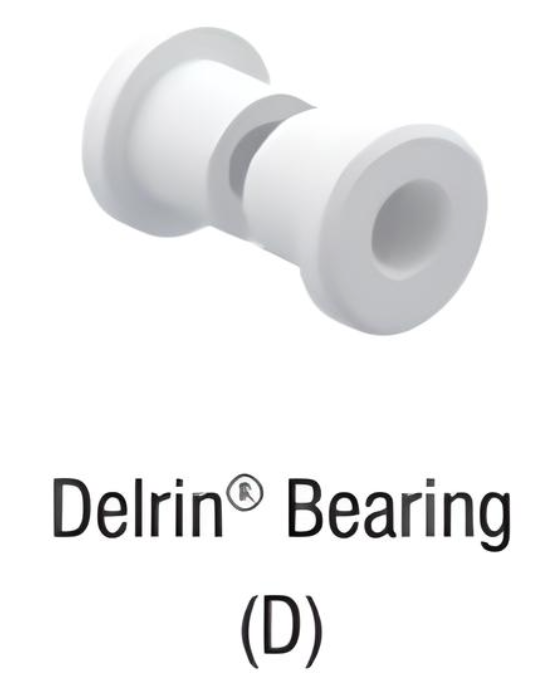

• Bearing Type: Delrin® Bearing
• Load Capacity (lbs): 200 lbs
• Total Height: 4-3/16"
• Swivel Lead: 1-1/8"

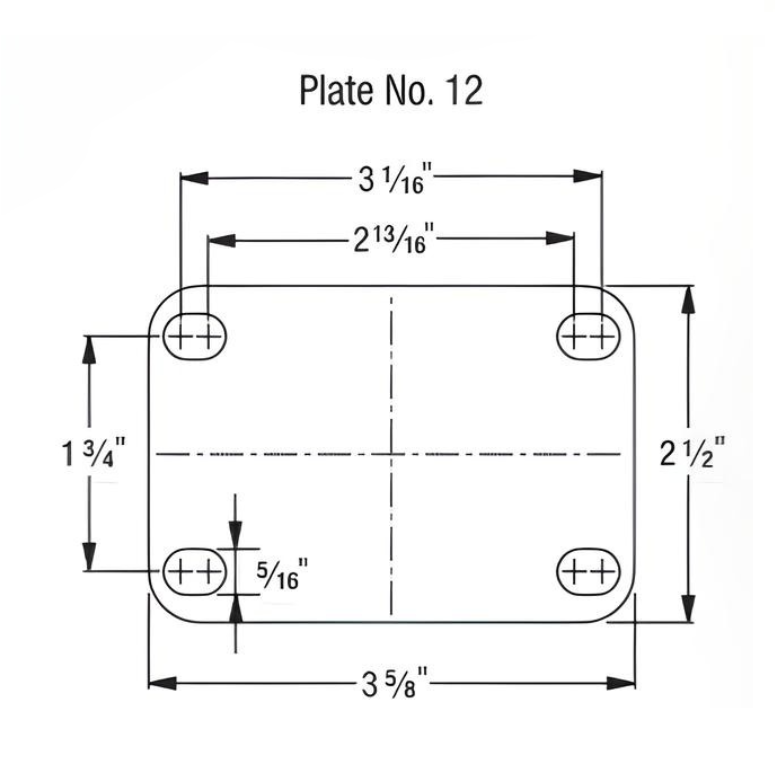

• Top Plate No.: 12
• Plate Size: 2-1/2" x 3-5/8"
• Bolt Hole Spacing: 1-3/4" x 2-13/16" to 3-1/16"
• Bolt Hole Size: 5/16"
• Where Used:
  • Store fixtures
  • Utility carts
  • Institutional equipment
  • Hospitality carts
• Features:
  • Hardened double ball raceways with Ø 1/2" kingpin
  • Zinc plated finish resists rust and corrosion
  • 3/8" axle and locknut
  • Multiple wheel bearing options available
  • Rig leg spacing: 1-9/16"
  • Rig and leg assembly designed for maximum durability
  • Hardness: 55–65 Shore D
  • Temperature range: -45° to 180° F
• Wheel Treads: ElastiSoft thermoplastic rubber (PRP) on polypropylene cores feature the easy rolling of a urethane wheel with the quiet operation and floor protection of rubber, non-marking
• Certified Quality Management System: ISO 9001
• Warranty: 3 Year

For any information about products, please contact us.

*Photos for reference purposes only.
