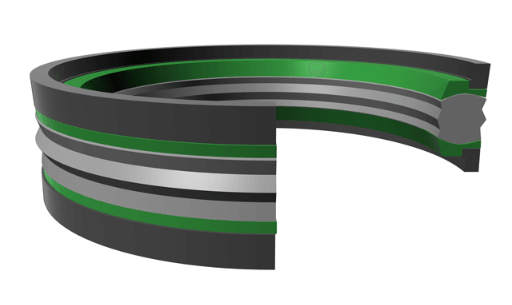

Piston Seal (P5B) 160mm x 130mm x 38.1mm - NBR/PA/POM

Product Details : Piston Seal (P5B) 160mm x 130mm x 38.1mm - NBR/PA/POM

• Part No: P160130254P5B
• Product Category: Piston Seals
• Product Type: Piston Seal
• Profile: P5B
• No. Of Pieces: 5 PCS
• Material(s): Nitrile/Polyamide/Polyacetal
• Material Code: NBR/PA/POM
• Temperature Range: -40°F to +230°F (-40°C to +110°C)
• Pressure Range: ≤ 5800 PSI (≤ 400 Bar)
• Surface Speed: < 1.6 ft/s (0.5 m/s)
• System Of Measurement: Metric
• Bore Diameter: 160mm

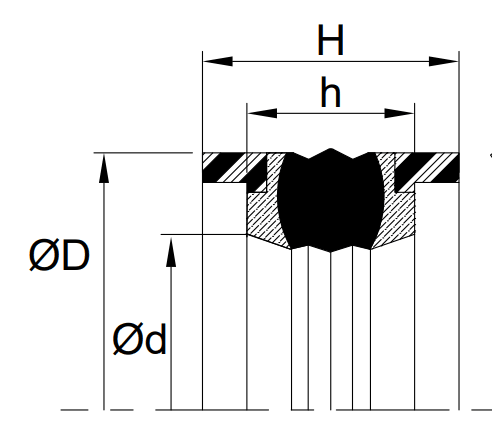

• Dimensions: 160mm x 130mm x 38.1mm
• Nominal I.D. (d): 130mm
• Nominal O.D. (D): 160mm
• Nominal Overall Height (H): 38.1mm
• Nominal Height (h): 25.4mm
• Nominal Cross Section: 15mm
• Details:
  •5 PCS
  •Designed for easy installation on one-piece pistons

For any information about products, please contact us.

*Photos for reference purposes only.
