Piston Seal (HDP 330) 6.000" x 0.375" - Nylon/Nitrile

Product Details : Piston Seal (HDP 330) 6.000" x 0.375" - Nylon/Nitrile

• Part No: HDP06000-375
• Product Category: Piston Seals
• Product Type: Piston Seal
• Profile: HDP 330
• Style: Step Cut
• No. Of Pieces: 2 PCS
• Material(s): Nylon/Nitrile
• Material Code: Nylon/NBR
• Temperature Range: -22°F to +212°F (-30°C to +100°C)
• Pressure Range: ≤ 8700 PSI (≤ 600 Bar)
• Surface Speed: < 3 ft/s (0.9 m/s)
• System Of Measurement: Inch
• Bore Diameter: 6.000"

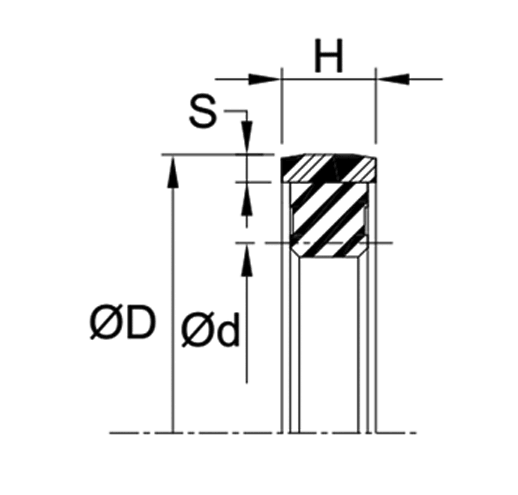

• Dimensions: 6.000" x 5.240" x 0.362"
• Nominal I.D. (d): 5.240"
• Nominal O.D. (D): 6.000"
• Nominal Height (H): 0.362"
• Groove Height: 0.375"
• Details:
  •2 PCS

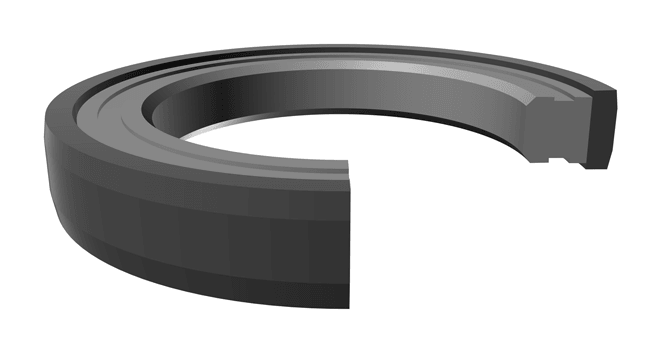

  •Set consisting of a stepped-cut thermoset sliding ring with an elastomeric loader ring
  •Step Cut

For any information about products, please contact us.

*Photos for reference purposes only.
