Aluminum Camlocks (Standard) - 266

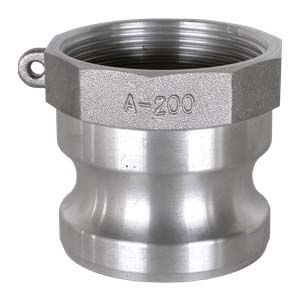

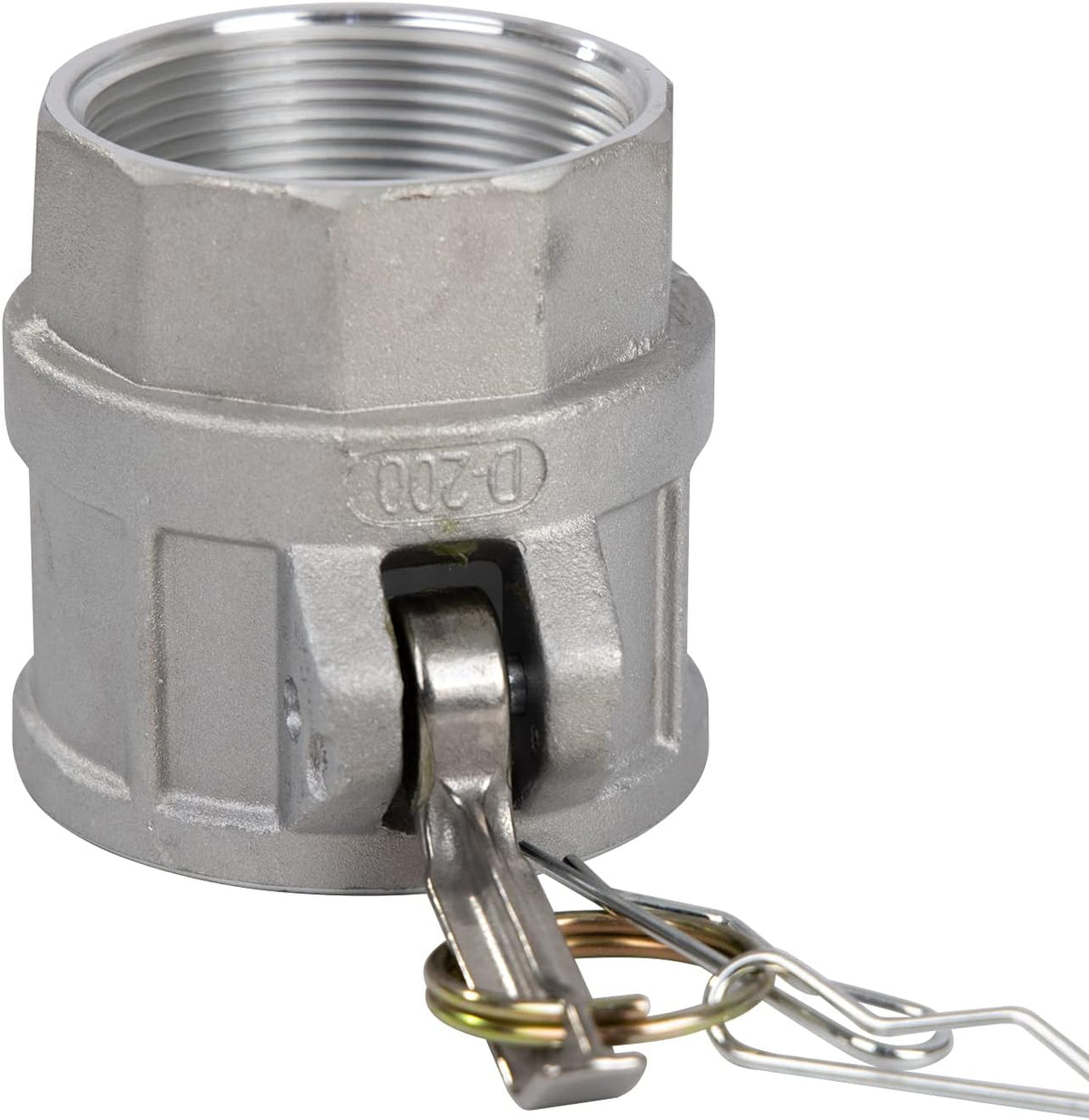

I only list camlock parts A and D, which are Female Pipe thread.

If you want a specific connection style like a barbed end or MIPT end please contact me at info@irrigationspecialist.ca to create a custom order. All sizes and styles not show here can be custom ordered. *

Camlocks are ideal where frequent and fast connections are required on fluid transfer lines (no camlock materials or styles are designed for use with compressed air, gases or steam).

 Our standard aluminum feature 304 stainless pins, forged brass arms, plated steel finger rings, sandcast body finish, and are heat treated to provide greater durability. They are made to strict tolerances to ensure a leak proof seal (i.e. they meet MIL SPEC 27487, A-A-59326

 Always confirm if gasket material is compatible with fluid (refer to the back of the 'Camlocks Section' for full listing of gasket materials). Rated Working Pressure @ 20°C (70°F): 1/2" to 4" sizes = 150psi,

Temperature Range: As a guide only, aluminum may be suitable for -100°C (-150°F) to +121°C (+250°F)
