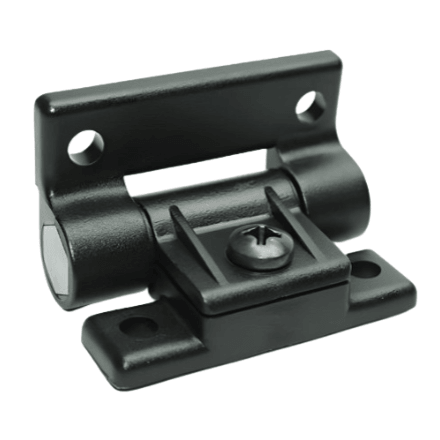

15 Series Adjustable Tension Panel Hinge w/ Mounting Hardware

15 Series Adjustable Tension Panel Hinge w/ Mounting Hardware

Details & Specifications

• Part No: 15HI8515
• Series: 15 Series

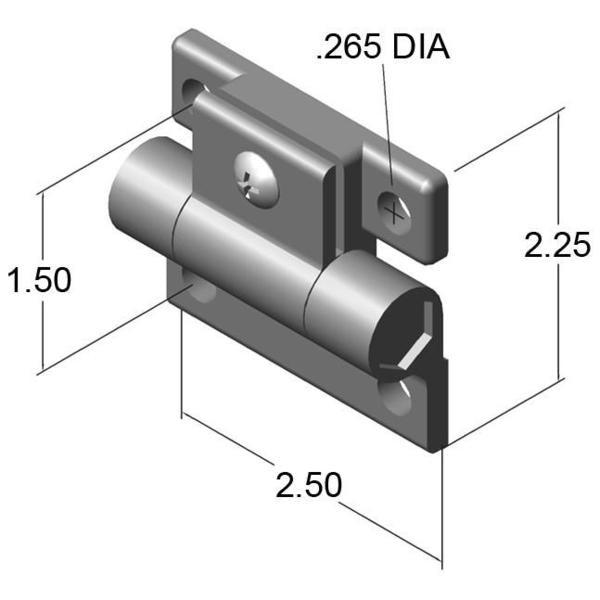

• Dimensions in Inch: 2.50" × 2.25" × 0.78"
• Weight Lbs: 0,15
• McMaster #47065T163
• They are constructed using high strength Acetal with Polycarbonate pin. The tension of the hinge can be adjusted by tightening the screw on the hinge.
• 45 lbs. load capacity per hinge.
• The following hardware is included with each hinge:
• (2x) 1/4-20 x 5/8 BHSC & (2x) 15FA3536
• (2x) 1/4-20 x 5/8 BHSC, (2x) 1/4 washer & (2x) #1/4-20 Hex nut

For any information about products, please contact us.

*Photos for reference purposes only.
